Under Floor Heating Mat ALL SIZES Dual Core Electric 200w/m2Under Tile Heating

mUnder Floor Heating Mat ALL SIZES Dual Core Electric 200w/m² Under Tile Heating

Senphus Under Floor Heating Mat ALL SIZES Dual Core Electric 200w/m² Under Tile Heating  are include all kinds of  color and structure and mats materials.

Price includes

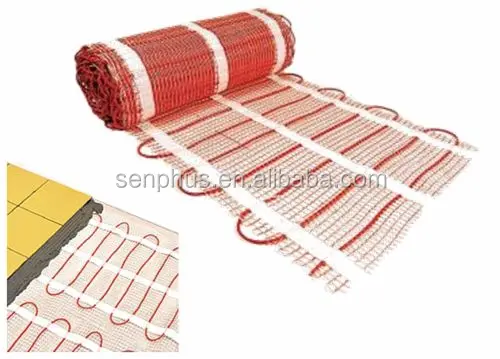

1. Senphus 200w/m² underfloor heating mat. Easy fit with complete self adhesive mesh.
2. Thermostat if required (selected type).
3. Comprehensive installation manual.
4. Floor temperature sensor with 2.5m cable.

Features

Tough, Safe, Long Lasting Wire

• Dual core wire with simple single connection point.
• Thin 3.6mm cable keeping the increase in floor height to a minimum.
• Tough Fluoropolymer conductor insulation with hard PVC outer insulation ensuring durability.
• 100% armoured earth coverage to entire wire offering safety & peace of mind.
• 2.5m Cold lead (2-wire plus ground braid).
• Twin conductor construction emitting no harmful EMF.
• Full CE Certification
• ROHS Compliant.
• Genuine full 10 year manufacturer backed heat mat guarantee.
• 200w/m² giving ample power for sole-source heating even in poorly insulated rooms such as conservatories.
• High output of 200w/² also greatly reduces heat up times compared to 100w/m² or 150w/m² systems.



Mat design

• The entire mesh of the mat is self adhesive, unlike others with small adhesive strips. This makes the installation of both the heating mat and the latex / tile adhesive on top considerably easier.
• Thin sticky mat that doesn't curl up from the floor unlike others.
• Easy installation with zero maintenance required. Once installed there is nothing to leak or burst and nothing to flush, bleed, clean or service.

Ultimate Comfort

• Even positioning of the heat source means optimum comfort is achieved throughout the whole room unlike hot or cold spots produced by radiators.
• Thermostat control promotes energy savings through better control of zone heating, meaning you only heat the rooms you want, when you want.
• The temperature profile of underfloor heating is much closer to the ideal heating profile, where feet are warm, while the head remains cool.

Product Details

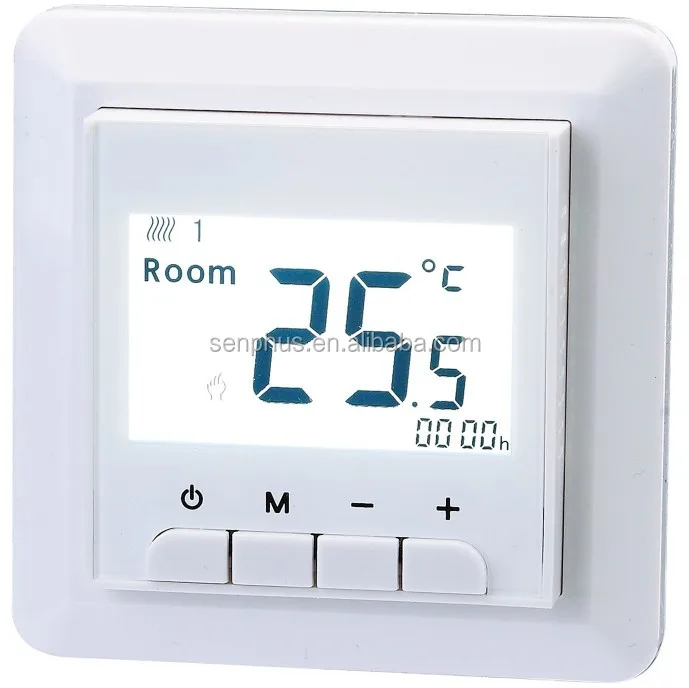

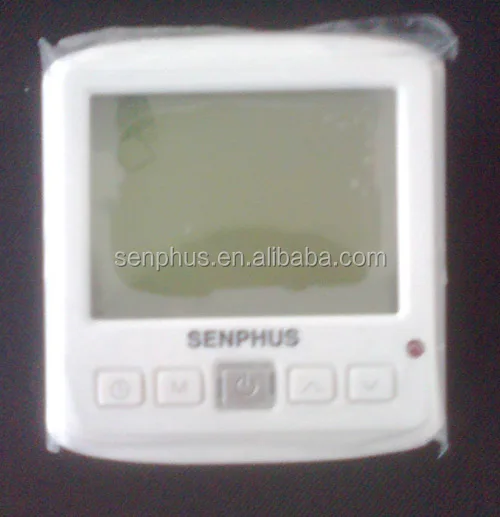

Thermostat

Please see our other listings for full details on the thermostats.

All digital models are fully programmable with timer functions.

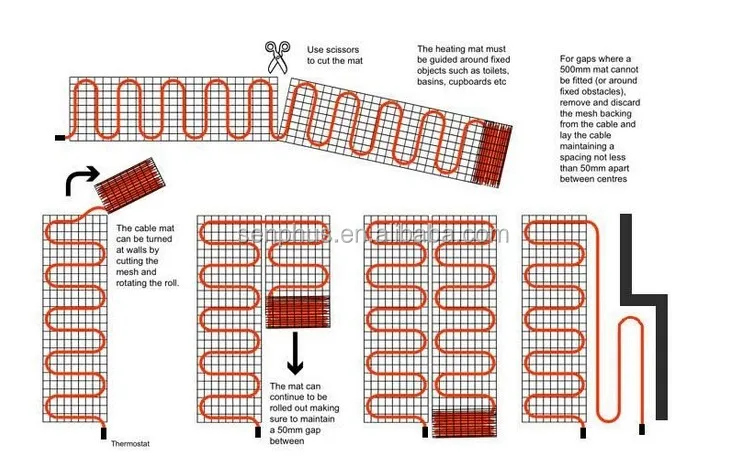

Heat Mat Size

Before selecting your heating, it is vital to ensure you have the correct size heat mat to suit your room. The correct size is required as the wire CANNOT be reduced or extended.

1. Work out the total area of the room
2. Deduct the areas of all fixed items such as kitchen units, bath, toilet e.t.c.
3. Deduct a further 10% from this remaining area. This allows for the spaces between the mats and around the edge.

It is always best to have a little less heating than some left over!

Electrical Considerations

• As with all electrical projects governed by Part P regulations, all mains electrical connections must be undertaken by a certified electrician.
• The heating system must be protected by a 30mA RCD. This can be situated within the consumer unit or via a dedicated RCD fused spur.
• We recommend a maximum area of 15m² to be controlled by one thermostat. Any area greater than this should be split into separate zones (different heat mats) and controlled by more than one thermostat.
• Ensure the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Normal ring circuits are rated at 13A and an electrical feed can be taken via a single 13A fused spur.

Technical Data
